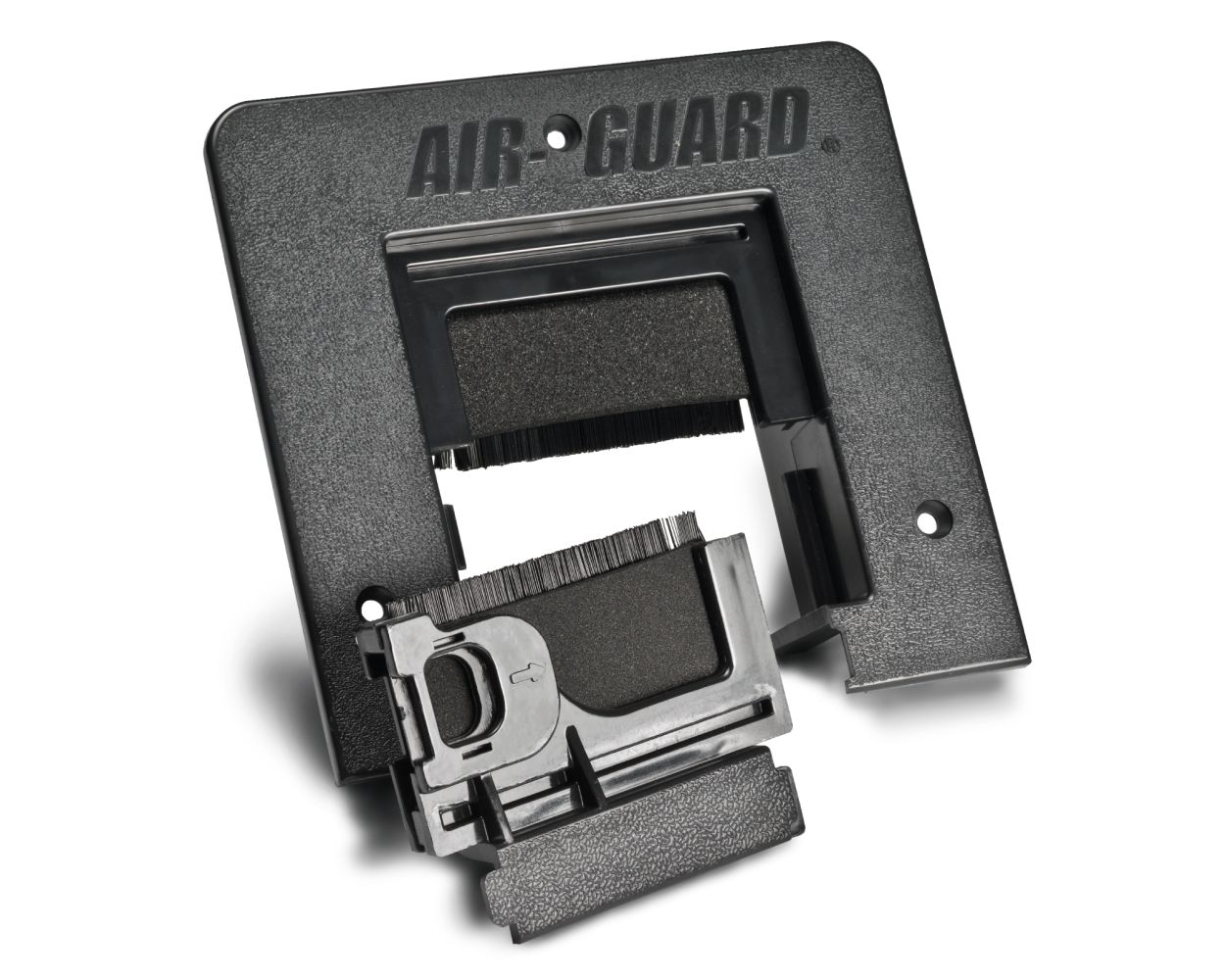

AirGuard Brat - Brush & Rubber Gasket Grommet with Removable Brush - SKU# 116-800-030

In stock

AirGuard Brat - Raised Floor Brush Grommet for when you need the best cable seal on the market but in a smaller size.


The AirGuard Brat, for when you need the best cable seal on the market but in a smaller size.

Utilizing the same dual stage technology that made the AirGuard Extreme a test proven superior product, and featuring the removable back brush of the larger AirGuard Flush Mount sealing system, the Brat is another industry favorite for eliminating air bypass and controlling air leakage in an under floor air cooled data center system.

Ideal for smaller cutout cable openings, or smaller cable bundles, the Brat’s removable brush allows panel removal without “trapping” cables.


Greatly reduces bypass airflow
Higher equipment cabinet densities
Increase cooling efficiencies and capacity
Improve static air pressure under the raised floor
Prevention of electrical equipment from overheating
Data center best practice
Hot/cold aisle floor configuration
Hot/cold aisle containment system
NFPA 75 Standard for protecting cable openings in floors
NFPA 75 Standard for cable openings and barrier penetrations
NFPA 75 Standard minimizing the entrance of debris beneath a raised floor
Constructed of flame retardant and heat resistant materials
Attractive textured, impact and slip resistant surface
ABS polycarbonate construction with a UL 94 VO rating
Two piece construction allows installation without disconnecting cables
Dual stage gasket sealing system
Flexible EPDM rubber gasket


Cutout—Center Installation—4.5ʺ× 4.5ʺ
Usable Area—3.3ʺ× 3.2ʺ
Overall—6.9ʺ× 6.4ʺ
