Colored Boxes & Faceplates

Another First for PDU Cables

As the first power cable manufacturer to offer color choices of liquid-tight conduit, PDU Cables has expanded its offering to include eleven colors for its receptacle boxes and faceplates (blue, black, red, orange, green, yellow, gray, pink, white, purple and brown).



The use of Colored Faceplates & Boxes

Color coding power cables in a mission critical facility makes tracing and managing primary and redundant power sources and key infrastructural systems and components easier, and in data center management easier usually translates into fewer outages and less downtime.

Eleven standard colors of boxes and faceplates




To make data center management easier, PDU Cables, the first branch circuit power whip manufacturer to offer colored conduit, now offers colored face plates and boxes painted to match its eleven colors of Liquid-Tight Flexible Metal Conduit.











1900 colored boxes and faceplates


Even if you aren't using Liquid-Tight Flexible Metal Conduit, you can still color code your branch circuit power whips for primary and redundant power sources.



PDU Cables has colored faceplates and boxes in all eleven colors for various styles of both weatherproof and 1900 boxes, the perfect way to add color for cable management even if they are mated to greenfield or Flexible Metal Conduit (RWS or RWA).







Mennekes colored back boxesMultiple Colors Permit:

  • The separation of primary power from redundant power.
  • Easier identification of power feeds and panel board within the PDU.
  • PDU Cables ensures that the colors of the faceplates and boxes remain consistent from order-to-order.





Following are a few photo's of different power whips utilizing various options of color matched conduit, boxes and faceplates.

NEMA locking device with blue red dot box, faceplate and conduit

Color Matched Box, Faceplate and Conduit (Blue)

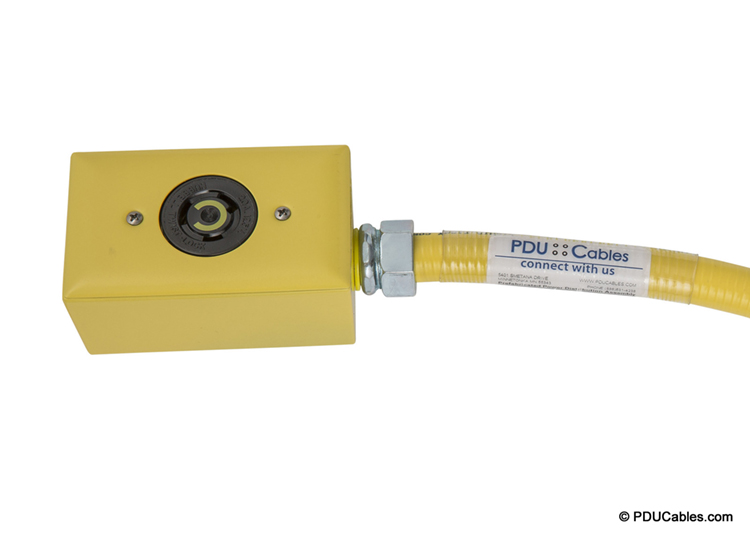

NEMA locking device with yellow red dot box, faceplate and conduit

Color Matched Box, Faceplate and Conduit (Yellow)

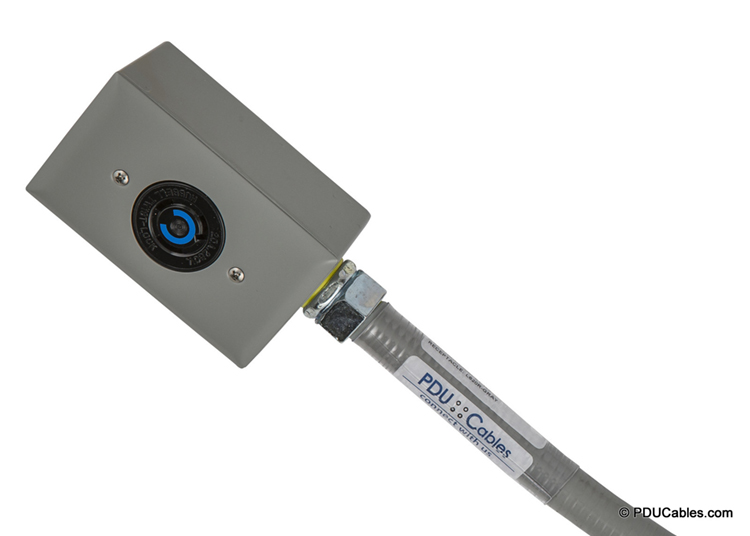

NEMA locking device in grey red dot box, faceplate and conduit

Color Matched Box, Faceplate and Conduit (Grey)



NEMA locking device with green red dot box, faceplate and conduit

Color Matched Box, Faceplate and Conduit (Green)

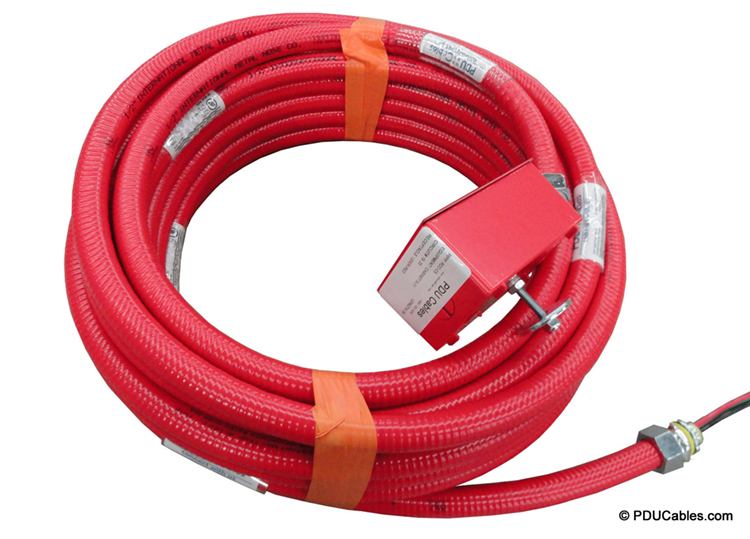

NEMA locking device with red red dot box, faceplate and conduit

Color Matched Box, Faceplate and Conduit (Red)

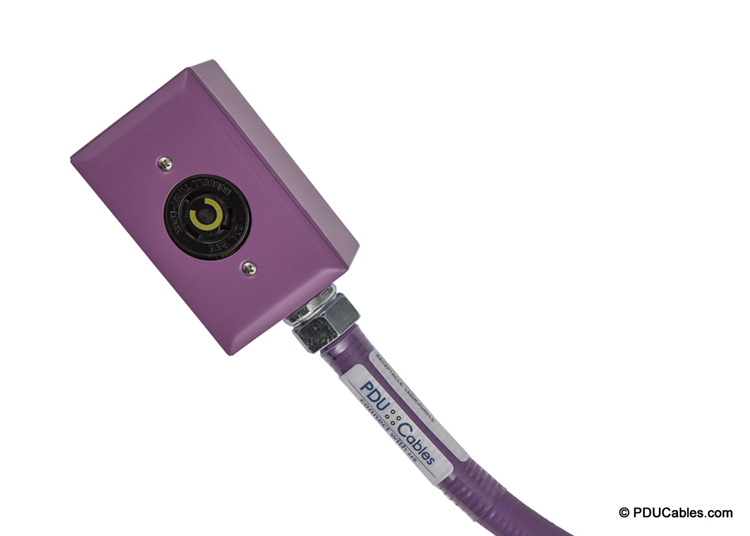

NEMA locking device in purple red dot box, faceplate and conduit

Color Matched Box, Faceplate and Conduit (Purple)



NEMA locking device with brown red dot box, faceplate and conduit

Color Matched Box, Faceplate and Conduit (Brown)

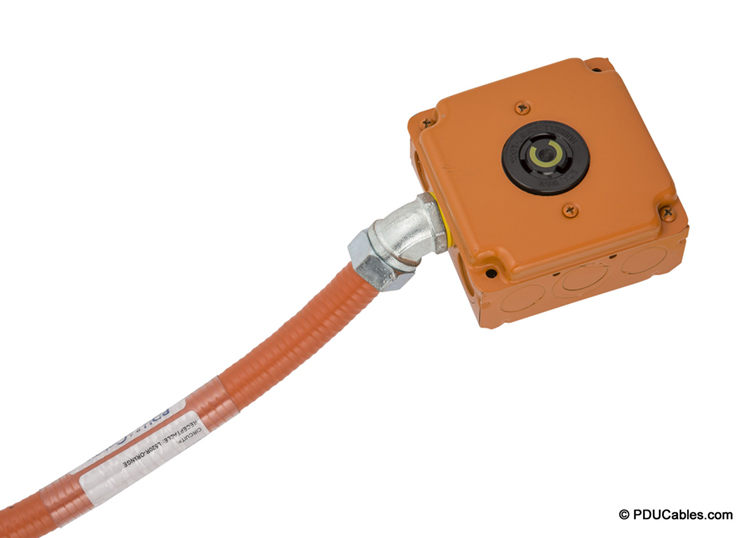

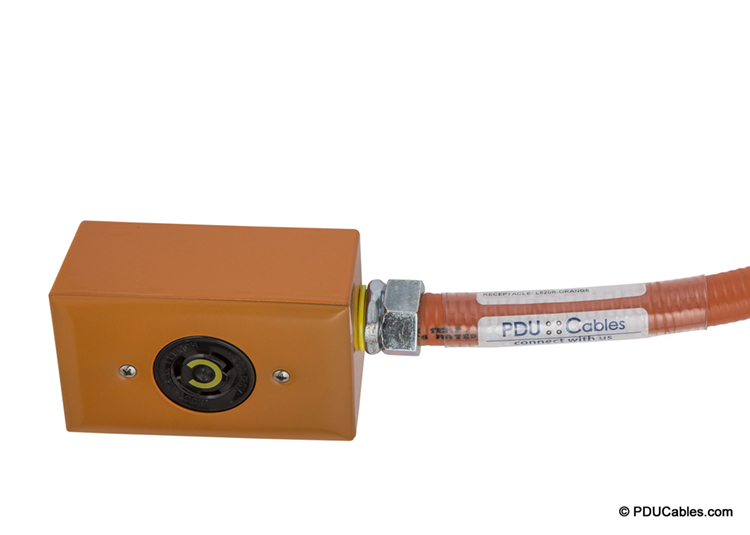

NEMA locking device with orange red dot box, faceplate and conduit

Color Matched Box, Faceplate and Conduit (Orange)

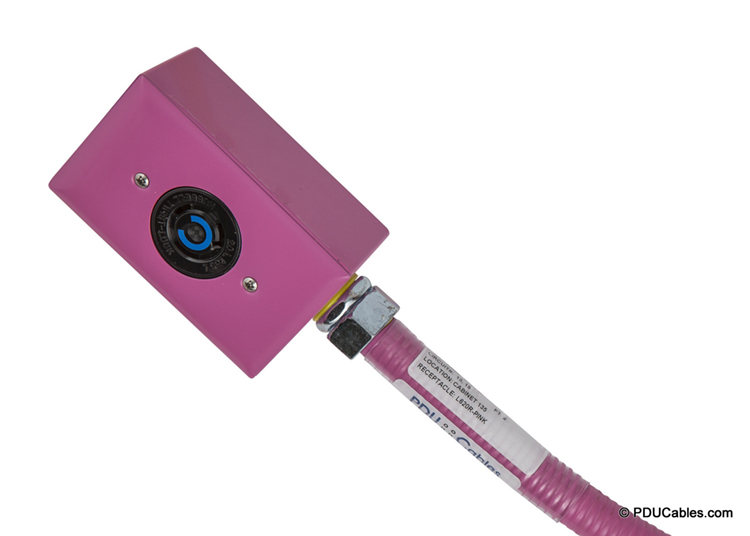

NEMA locking device in pink red dot box, faceplate and conduit

Color Matched Box, Faceplate and Conduit (Pink)

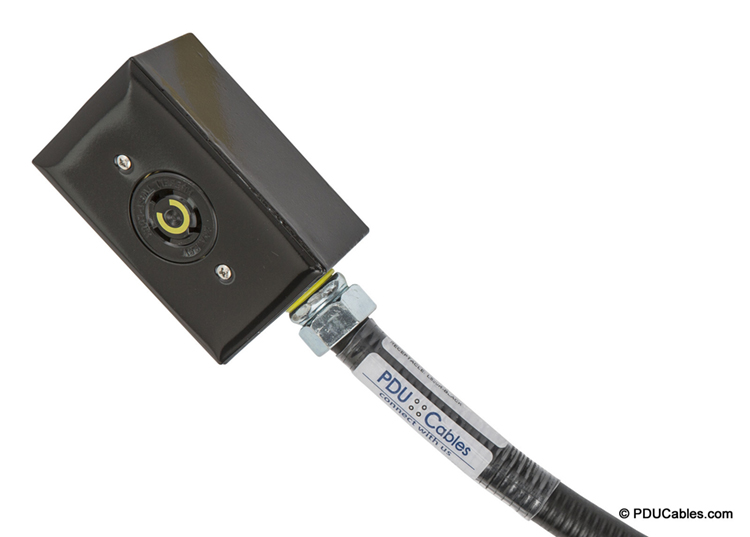

NEMA locking device with black red dot box, faceplate and conduit

Color Matched Box, Faceplatge and Conduit (Black)


NEMA locking device with white red dot box, faceplate and conduit

Color Matched Box, Faceplate and Conduit (White)

NEMA locking device in blue red dot box, faceplate with flexible metal conduit

Color Matched Box, Faceplate and Conduit Label with Greenfield Conduit



Color coordinated orange 1900 box, faceplate and conduit with double pedestal clamp w-Nut mounting hardware

Color Coordinated Orange Box, Faceplate and Conduit

Color coordinated green 1900 style box, faceplate and conduit with dual pedestal clamp mounting hardware

Color Coordinated Green Box, Faceplate and Conduit

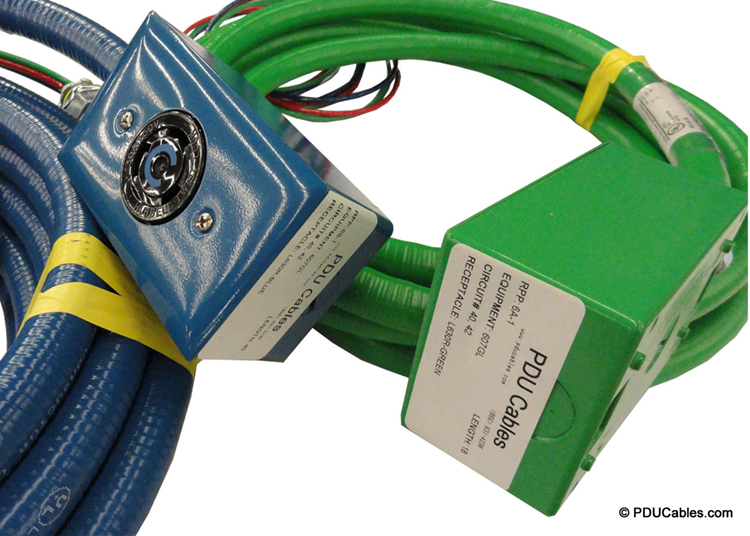

NEMA locking device in green and blue red dot box with box labels

Color Coding for Dual Power Source

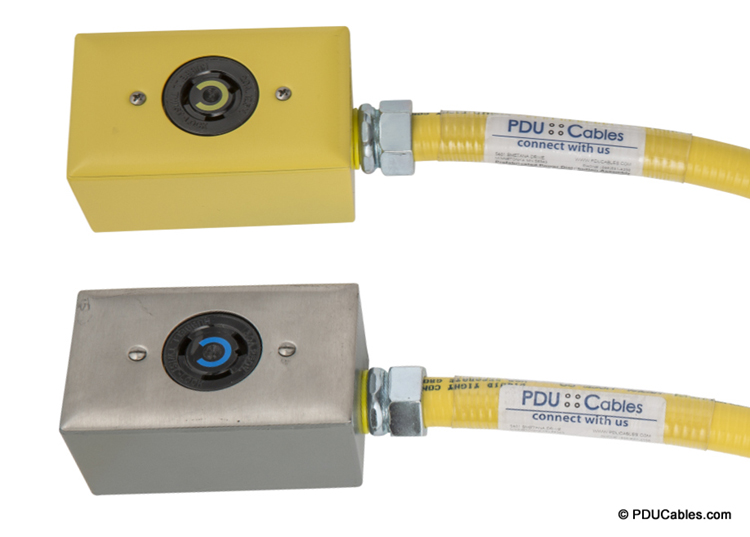

Comparing data center power whips with and without color matched boxes and faceplates

Comparing Color to No Color

Red daisy chain multi-circuit data center power whip with color matched box, faceplate and conduit

Color Matched Daisy Chain Multi-Circuit

Color matched orange 1900 box, faceplate and conduit

Color Matched 1900 Box, Faceplate and Conduit

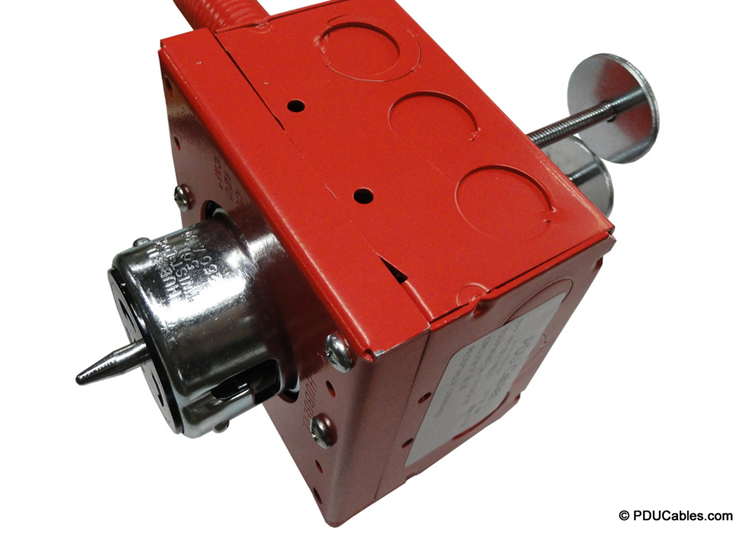

NEMA CS8369 50 amp locking device with color matched red 1900 style box, faceplate and conduit with dual uni-strut mounting bolts

NEMA CS8369 with Color Matched Red 1900 Box, Faceplate and Conduit

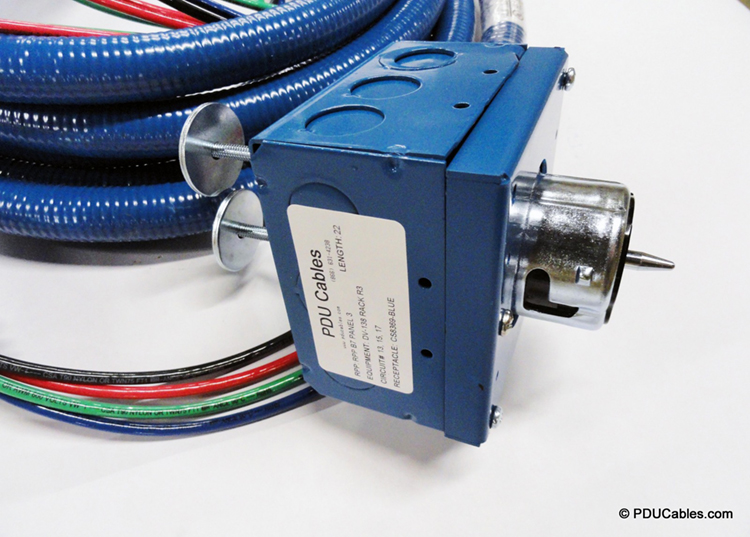

Color matched blue 1900 style box, faceplate and conduit with NEMA CS8369 with twin uni-strut mounting bolt and box label and color matched liquid-tight conduit

NEMA CS8369 with Color Matched Blue 1900 Box, Faceplate and Conduit

Color matched red red dot box, faceplate and conduit

Color Matched Red Weatherproof Box, Faceplate and Conduit
