AirBlock 4" Round - Single Layer Brush Grommet - One Piece Design - SKU# GT003BR

In stock

The AirBlock 4” Round - Brush Grommet offers an easy and economical solution to wire management in a raised floor environment and other architectural applications.

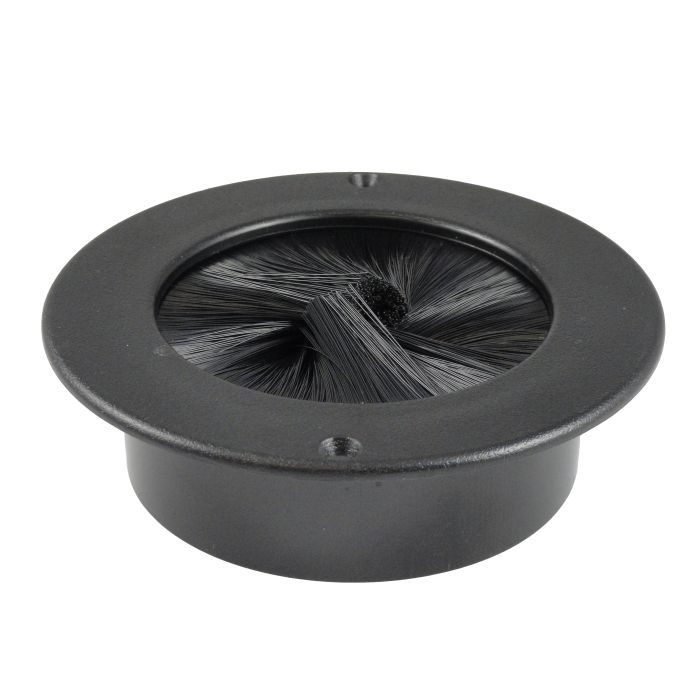

The AirBlock 4” Round Brush Grommet is an easy to install brush grommet designed to enclose and protect a single larger piece of conduit or a small bundle of power or low voltage wires using overlapping nylon brushes to create an airtight seal around cables. The grommet is designed to provide an airtight seal for limiting airflow bypass in a pressurized underfloor plenum environment, while meeting both NEC 645.5 and NFPA 75 standards for protecting cables in floor openings from abrasion and minimizing debris from entering through cable openings.

Constructed from the same UL 94 V-O flame rated ABS polycarbonate materials that make the AirGuard product line an industry leader.

Perfect for data centers, under floor air distribution in raised floor office buildings, standard cable management for data and power access and even sealing smaller openings and penetrations in walls, and ceilings.

• Uses a standard 4” (102mm) hole saw for installation

• Low profile textured surface to compliment floor coverings and modular furniture

• 2-1/2” (64mm) maximum cable size • Outer dimension 5-3/4”

• Hole dimension 4”

• Seal – Overlapping nylon brushes

• Mounting – Two self-tapping screws included

• Color – Black

AirGuard AirBlock 4" Round Brush Grommet
