AirBlock 6" Round - Rubber Gasket - Pre-Sized with 1/2" and 3/4" Hole Knock-Outs - SKU# 116-800-010
AirGuard's AirBlock 6" Round cable grommet provides excellent protection and utilizes standard EPDM rubber grommet with four cable knockouts.
The AirBlock is a heavy duty split EDPM rubber gasket cable grommet system for sealing around cable openings going through access flooring. Housed in flame retardant and inherently anti-static ABS polycarbonate, featuring EDPM rubber gasket technology, each AirBlock offers multiple cable knockouts configurations to control bypass air by forming an airtight seal around cables, helping to eliminate air leakage in under-floor air installations.
The two-piece design removes the need for an outer housing ring, and facilitates quick and easy installation of the grommet. The AirBlock mechanically locks into a access floor panel hole via screw toggles located on the top surface of the grommet. Exposed screws are finished with a cap plug that matches the grommet surface.

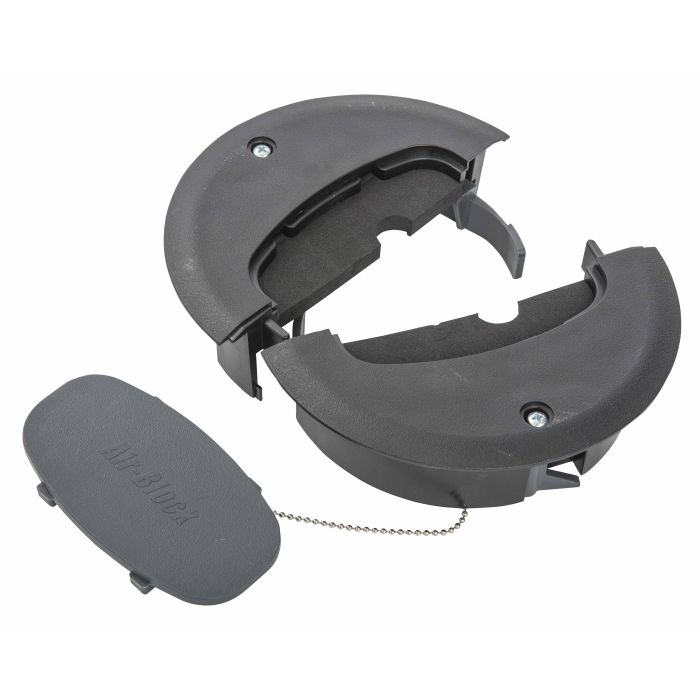

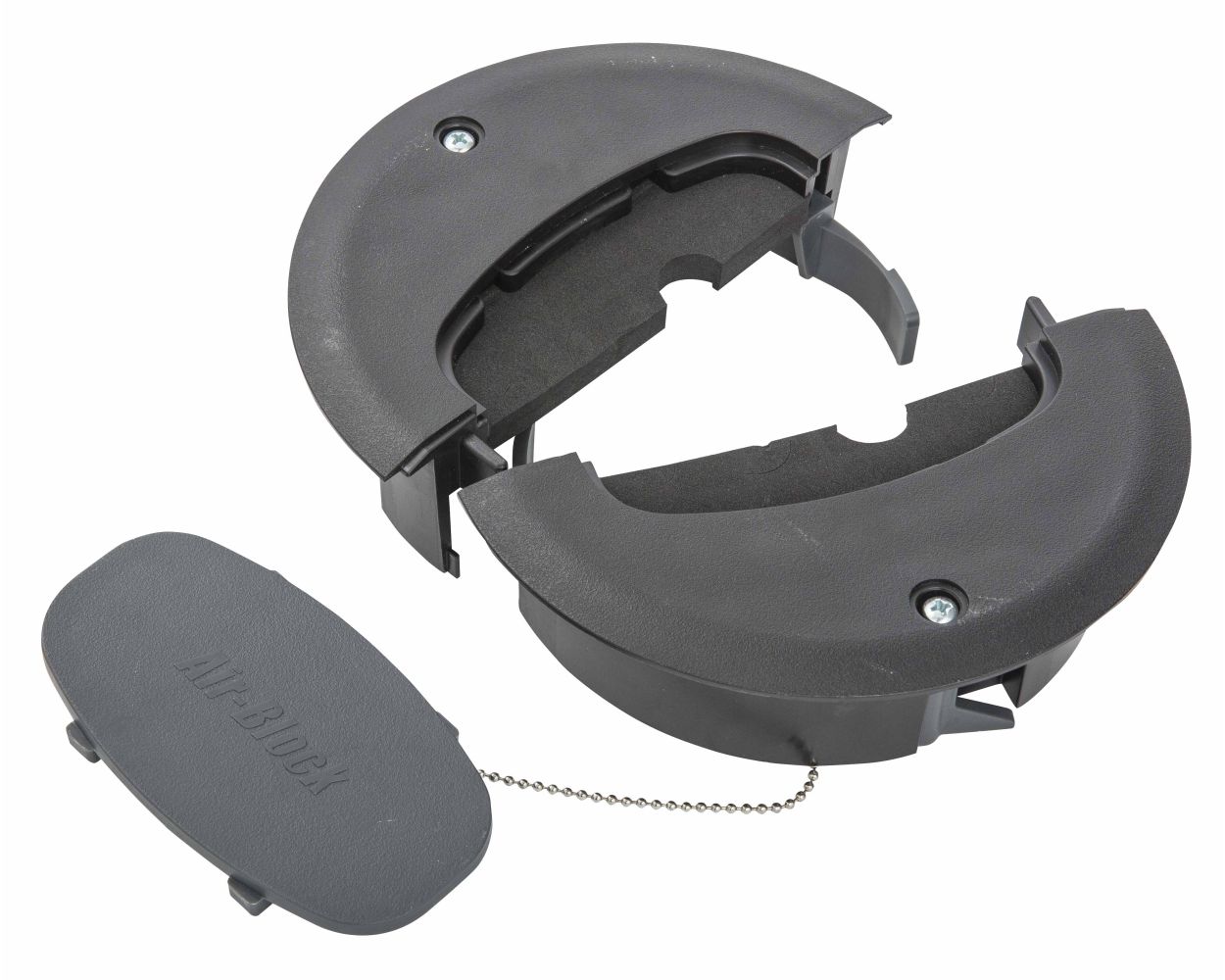

Grommet splits into two sections for quick and easy installation, no fishing cables through the grommet.
Included with each product are installation instructions and mounting hardware.
Dimensions:
Diameter Hole – 6.0”
Knock-Outs—(2) 0.5” and (2) 0.75”
