Custom Mounting Hardware Options

Mounting hardware is available as an add-on to any branch circuit power whip cable assembly.  PDU Cables offers a variety of options that facilitate elevated mounting positions including beam and pedestal clamps, mounting bolts, brackets and mounting ears attached through the backs of boxes.  Underfloor or overhead, we can deliver power whips with pre-installed hardware to accomodate mounting to pedestals, stringers, horizontal supports, ladder rack, cable tray and basket tray.



In addition to some of the industry standard mounting options, PDU Cables can work with you to design and develop custom mounting solutions to meet your unique needs.



Standard Mounting Hardware:

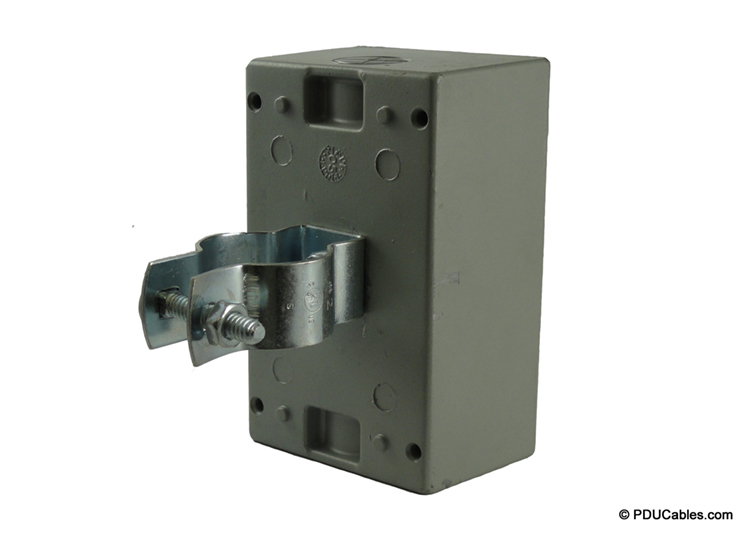

 Pedestal clamp mounting bracket with nut on weatherproof box  Pedestal clamp mounting bracket without nut on weatherproof box  Uni-strut mounting bolt on a weatherproof box  Dual uni-strut mounting bolt on 1900 style box  C50 basket tray bracket on 1900 style box
 Pedestal Clamp (with nut)  Pedestal Clamp (without nut)  Uni-Strut Bolt (single)  Uni-Strut Bolt (double)  C50 Bracket

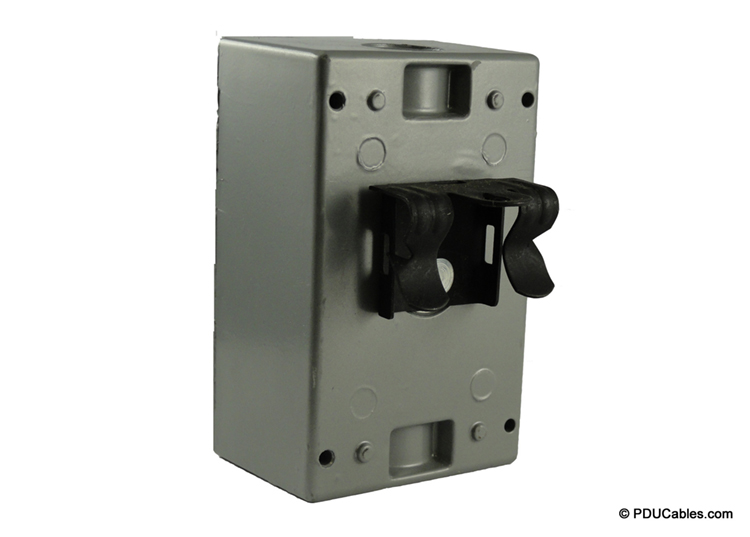

 Mounting ears on weatherproof box  Cast beam clamp attached to weatherproof box  Mounting plate attached to a 1900 style box  B-Line flange beam clamp attached to a weatherproof box  B-Line conduit hanger attached to a weatherproof box
 Mounting Ears  Cast Beam Clamp  Mounting Plate  B-Line Flange Beam Clamp  B-Line Conduit Hanger


















Mounting hardware allows your cable receptacles to be secured to raised-floor pedestals, beams or uni-struts. This facilitates improved airflow and allows easier access to the receptacles and keeps the cables off the floor eliminating the risk of water damage.

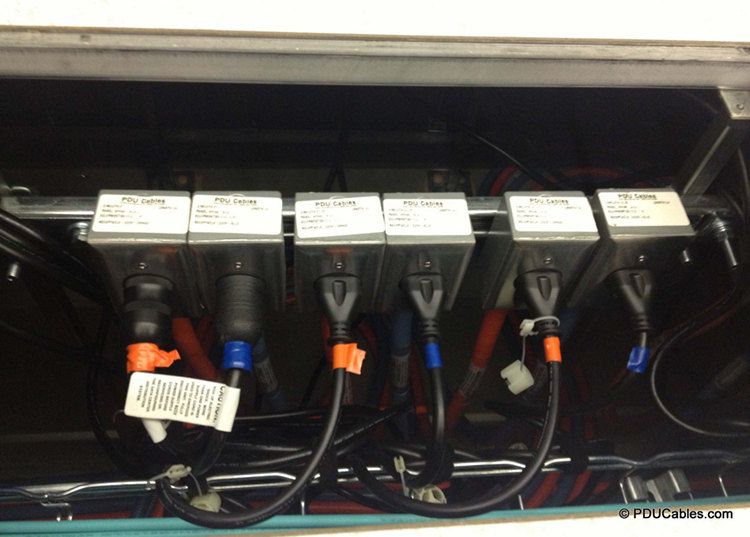

Many of our customers utilize an elevated mounting position so they can lift a floor tile and have the power whip receptacle within easy reach.  With custom labeling on the boxes or faceplates, one quick glance and you know exactly which cable feeds which rack or cabinet A or B side.

Mounting hardware isn’t limited to just raised floors; PDU Cables also offers mounting options for overhead applications,  and will work with you to develop the mounting application that best meets your needs.

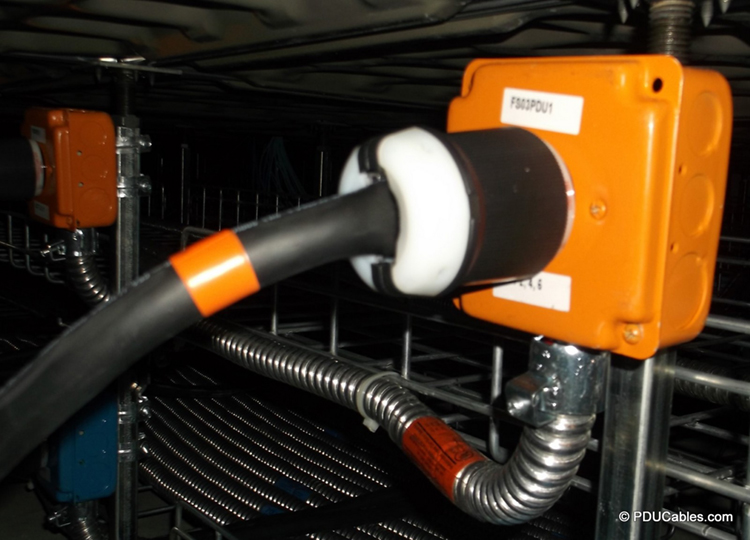

Underfloor mounted data center power cables Under raised floor pedestal clamp mounted data center power whips Data center power cable mounted to raised floor strut
Uni-Strut Bolt Under Raised Floor Pedestal Clamp Under Raised Floor Dual Pedestal Clamp Under Raised Floor

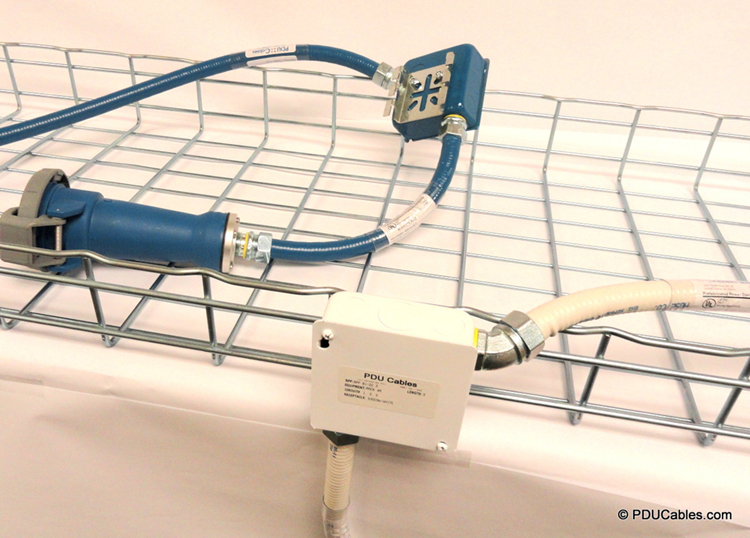

Power cables secured to overhead cable tray Multi-circuit data center power cables mounted to cable tray rack with mounting ears Data center power whips mounted to cable tray using field wire j-box and drop cord

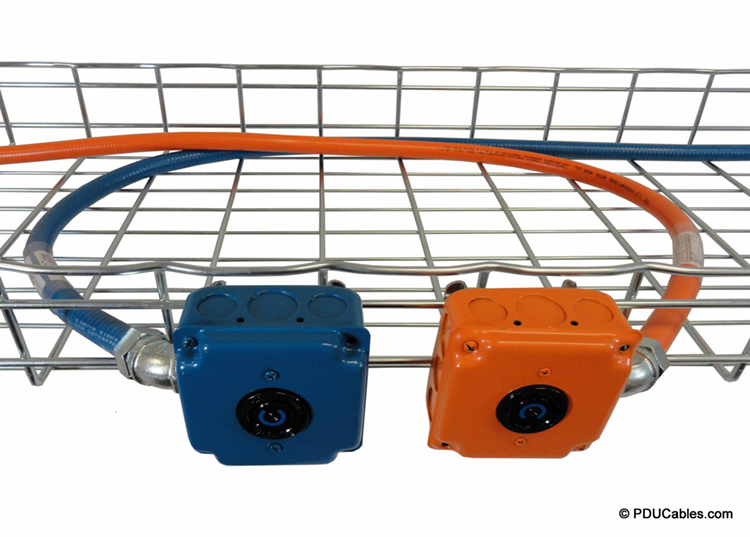

C50 Bracket Overhead Cable Tray Mounting Ears and C50 Overhead Basket Tray C50 Bracket Overhead Cable Tray

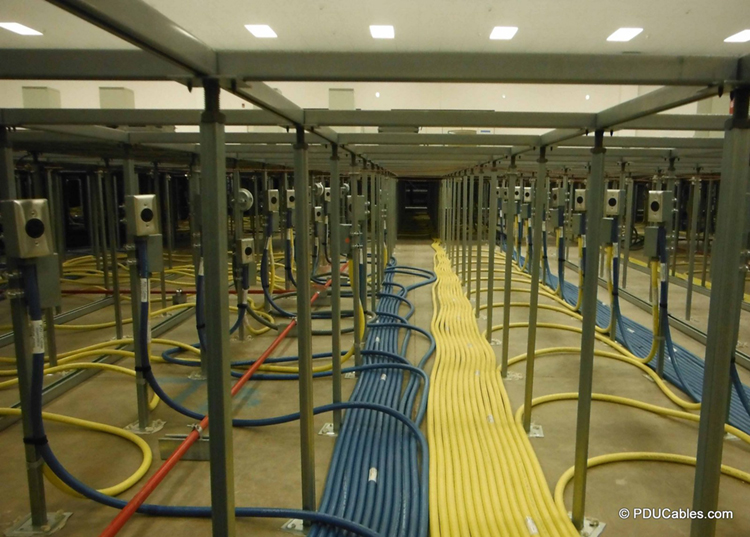

Proper airflow in and around the data center is critical to optimal operating efficiencies. Keep under floor power cables in the hot aisle running parallel to the computer room air conditioner (CRAC) unit airflow. Consider elevating mounting positions for the receptacles to help protect against possible pooling water and cable air dams, allowing for better air flow and improved CRAC unit efficiency.

PDU Cables offers a variety of mounting hardware to accommodate every possible data center need, including; uni-strut single and double bolt mounting kits, pedestal clamp mounting kits, cast beam clamps, mounting ears, C50 cable tray mounting brackets, B-Line conduit hanger clamps, B-Line flange beam clamps, mounting plates and others.  These can be added to both weatherproof or 1900 boxes, single circuit or multi-circuit daisy-chain or closed-nipple configurations.



Following are a few photo's of some of the different mounting hardware options PDU Cables offers.

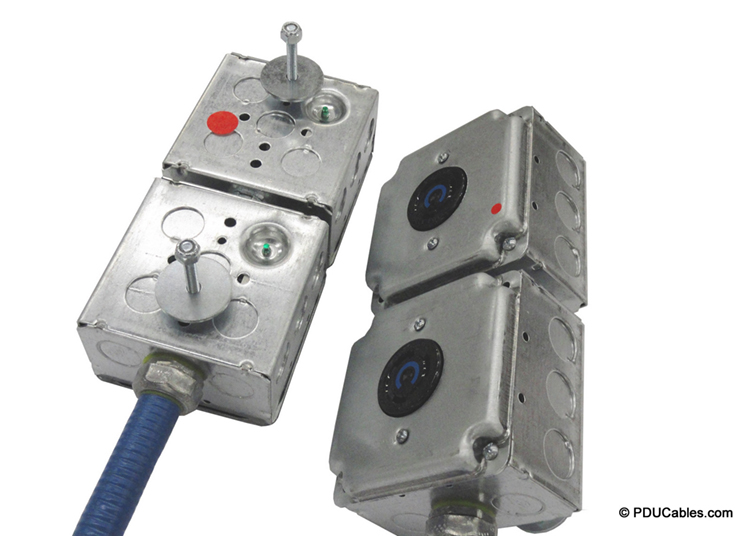

Uni-strut mounting bolt on a red dot box

Uni-Strut Mounting Bolt on Weatherproof Box


Uni-strut mounting bolt on a 1900 style box

Uni-Strut Mounting Bolt on 1900 Style Box

Dual uni-strut mounting bolt on 1900 style box

Dual Uni-Strut Mounting Bolt on 1900 Style Box



Uni-strut mounting bolt on red red dot box with box label

Uni-Strut Bolt on Red Weatherproof Box


Uni-strut mounting bolt on multi-circuit 1900 style box

Uni-Strut Bolt on Multi-Circuit 1900 Style Box

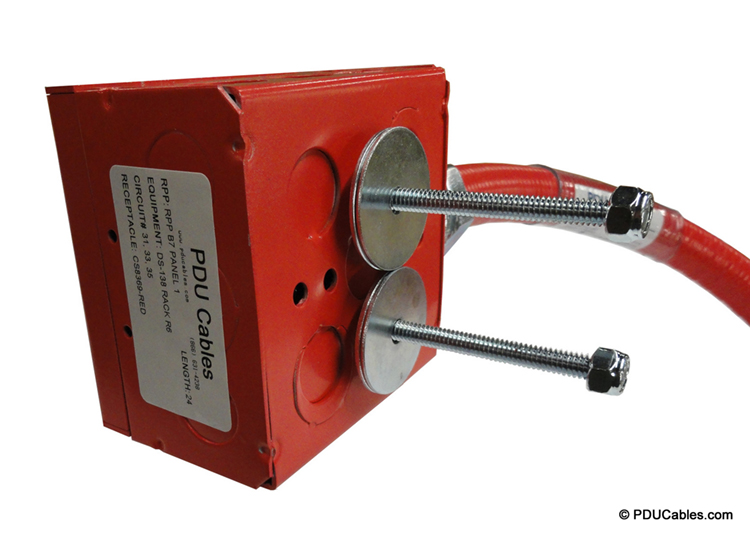

Dual uni-strut mounting bolt on red 1900 style box

Dual Uni-Strut Bolt on Red 1900 Style Box



Pedestal clamp mounting bracket on red dot box

Pedestal Clamp Mounting Bracket Without Nut


Pedestal clamp mounting bracket with nut on red dot box

Pedestal Clamp Mounting Bracket With Nut

Dual pedestal clamp mounting bracket without nut on weatherproof box

Dual Pedestal Clamp Mounting Bracket Without Nut



Pedestal clamp mounting bracket without nut on red dot box

Pedestal Clamp Without Nut on Weatherproof Box

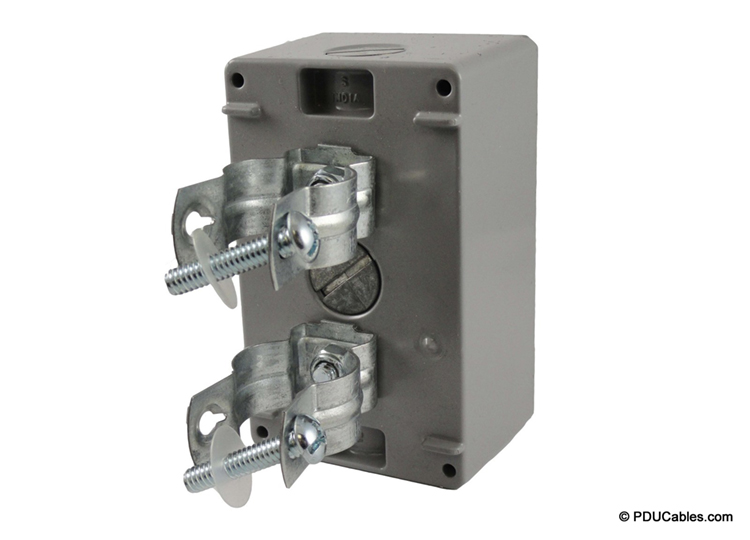

Dual pedestal clamp mounting bracket with nut on orange 1900 style box

Pedestal Clamp With Nut on 1900 Style Box

Dual pedestal clamp mounting bracket without nut on red dot box

Dual Pedestal Clamp Mounting Bracket Without Nut on Weatherproof Box



C50 basket tray bracket on 1900 style box

C50 Basket Tray Bracket on 1900 Style Box

C50 basket tray bracket on red dot box

C50 Basket Tray Bracket on Weatherproof Box

C50 bracket on 1900 style box mounted to basket tray

C50 Bracket attached to Basket Tray



Cast beam clamp attached to red dot box

Cast Beam Clamp on Weatherproof Box

Two mounting ears attached to a red dot box

Two Mounting Ears on Weatherproof Box

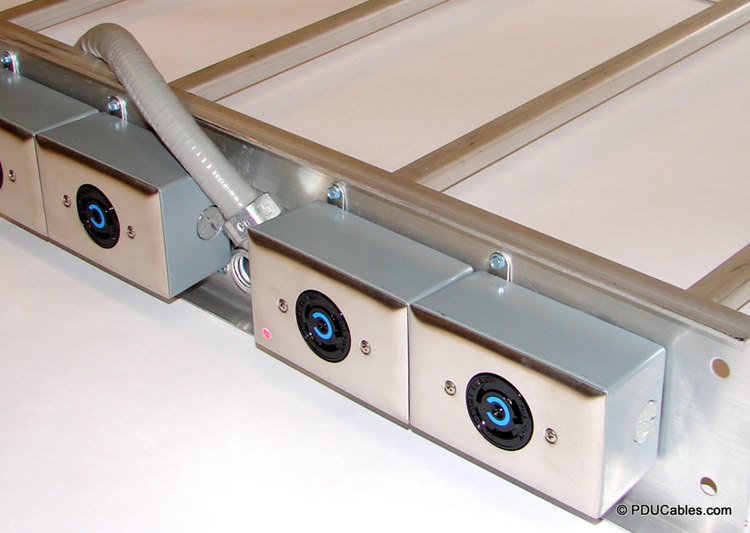

Multi-circuit data center power cables mounted to ladder rack with mounting ears
