TerminationEach ground bonding kit comes terminated with a single windowed two-hole compression lug crimped with 10,000 pounds using a hydraulic compression crimping tool to ensure long-term integrity of the grounding system. Dual lug termination options, with a lug crimped at both ends of the cable are also available. Lug terminations are available in 45 degree, 90 degree and straight options. When a single lug termination is selected the opposing end of the cable is pre-cut with a captive strip to speed installation.
CableThe cable is a high quality 19 strand No. 6 AWG – THHN – GRN 600 Volt for increased strength and flexibility. We offer standard lengths in 12” increments from 12” through 72” with longer or custom lengths available upon request.
HardwareEach ground bonding kit comes individually packed complete with a set of thread forming screws for securing to cabinets, tray or racking and a tube of antioxidant to ensure a bond between the cable and the grounding clamp. Various sizes and styles of clamps, crimps and split bolts are available for final termination to grounding grid.
Ground Bonding Kits - Select the length, and lug options to create a c...$17.00

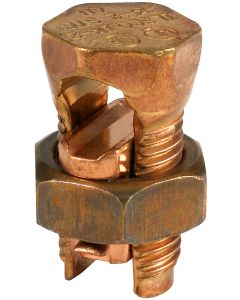

Split bolt connect ground bonding wire to grounding grid. Select the ...$4.00

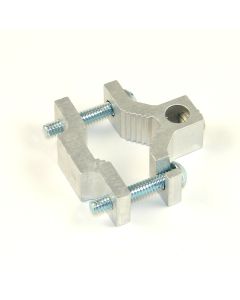

Secure your grounding strap to the grounding grid with a this small pe...$7.00

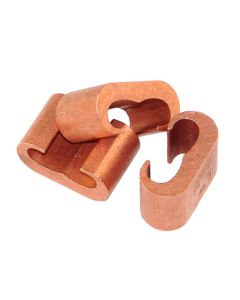

Use the ground grid C crimp clamp to make a secure connection between ...$9.00
