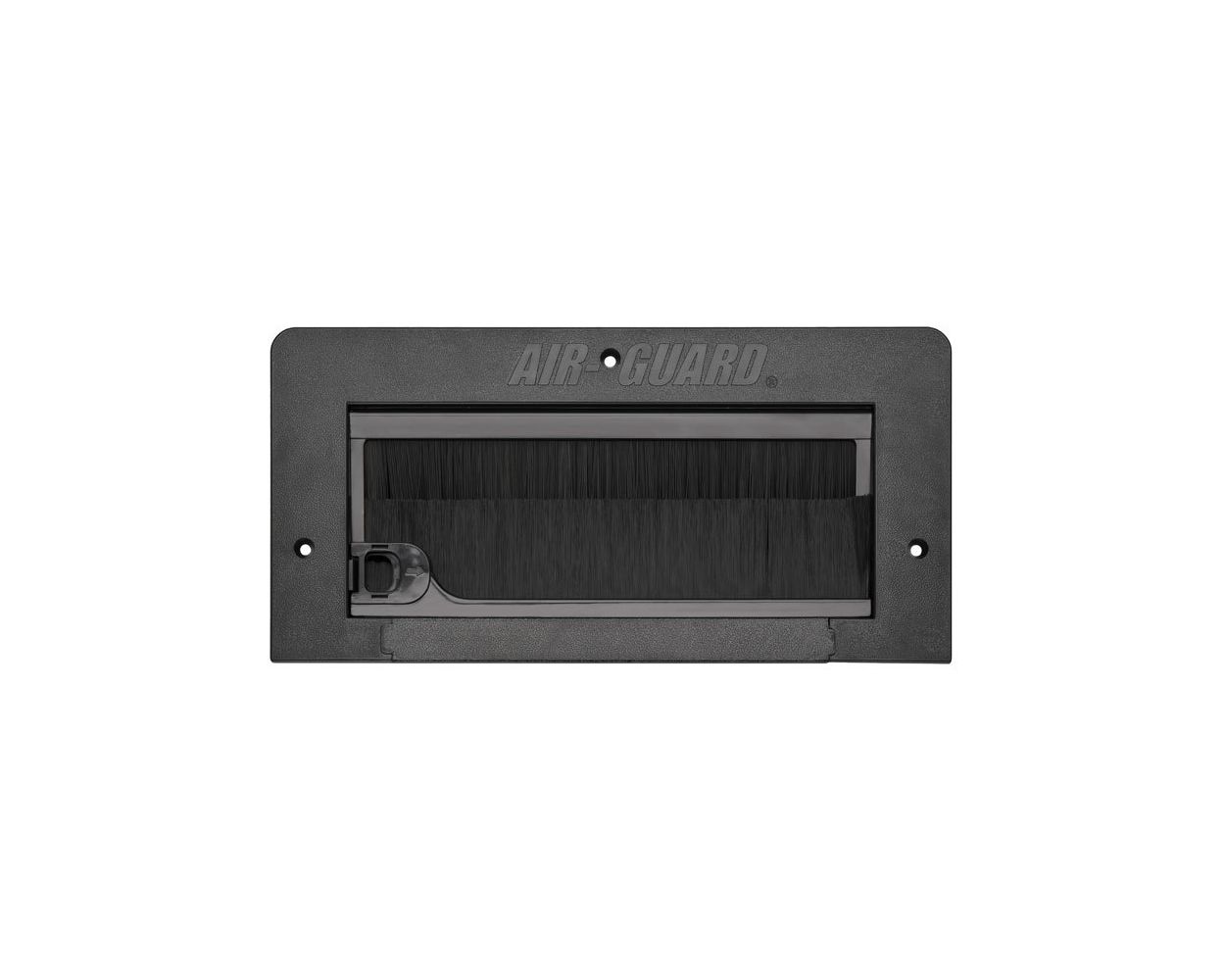

AirGuard Flush Mount - Brush Gasket Grommet with Removable Brush and Safety Cover - SKU# 116-800-001

$75.00
In stock
SKU
116-800-001

The award winning AirGuard Flush Mount - Floor Brush Grommet is the ideal cable seal when making new installations in your data center to maximize energy efficiency.



The award winning AirGuard Flush Mount - Floor Brush Grommet is the ideal cable seal when making new installations in your data center to maximize energy efficiency.

The overlapping brushes in AirGuard cable seal provides flexibility and simplicity in cable routing.  Designed with a removable brush cover; the Flush Mount prevents debris from entering the air plenum and causing damage to sensitive electronic equipment.

Benefits

  • Greatly reduces bypass airflow
  • Higher equipment cabinet densities
  • Increase cooling efficiencies and capacity
  • Improve static air pressure under the raised floor
  • Prevention of electrical equipment from overheating
  • Data center best practice
  • Hot/cold aisle floor configuration
  • Hot/cold aisle containment system
  • NFPA 75 Standard for protecting cable openings in floors
  • NFPA 75 Standard for cable openings and barrier penetrations
  • NFPA 75 Standard minimizing the entrance of debris beneath a raised floor

Feature

  • Constructed of flame retardant and heat resistant materials
  • Attractive textured, impact and slip resistant surface
  • ABS polycarbonate construction with a UL 94 VO rating
  • Two piece construction allows installation without disconnecting cables

Included with each product are installation instructions and mounting hardware.

Dimensions:

Cutout – 10.25”x 4.5”
Usable Area – 9.0”x 3.0”
Overall – 13.0”x 6.25”
